Live Event Monitoring (Event Monitor)

The Event Monitoring module is the real-time security operations center of the S-Safe system. This screen is designed specifically for security guards or control room operators to detect access events early and respond promptly to security incidents.

1. Live Event Log Table​

The upper area displays a continuously updating list of events pushed from door controllers, with no page refresh required (Auto-refresh):

  • Personnel: Displays the avatar and full name of the employee (e.g., Nguyen Van A, Tran Thi B) or shows Visitor for unidentified individuals.
  • Location (Source): The location of the door or device where the event originated (e.g., Basement Door, Warehouse Door, Main Entrance).
  • Event: The type of event recorded by the system (e.g., Card Rejected, Door Status, System Event).
  • Details: A specific description of the reason or status (e.g., Access denied: Card not registered in the system, Door connection lost, System rebooted unexpectedly).
  • Time: The exact timestamp (Year-Month-Day Hour:Minute:Second) of the event's occurrence.
  • Status: Associated alert indicator (e.g., a red ALERT badge for access denial events or danger warnings).

Quick Action Buttons (Top-right corner):

  • Test Event (Green): Generates a simulated event to test connectivity and system response.
  • Export (Orange): Exports the current event log list to a data file.

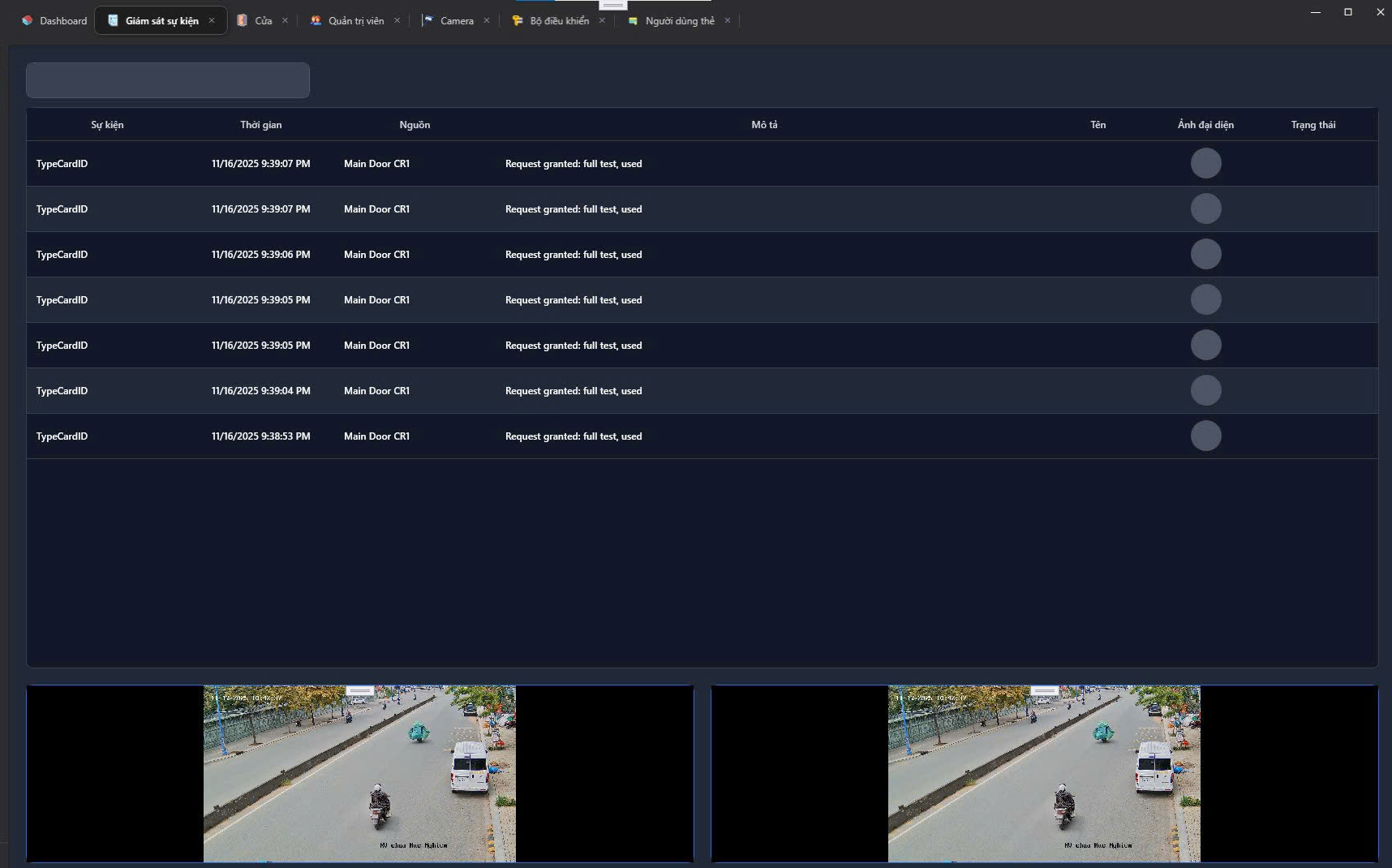

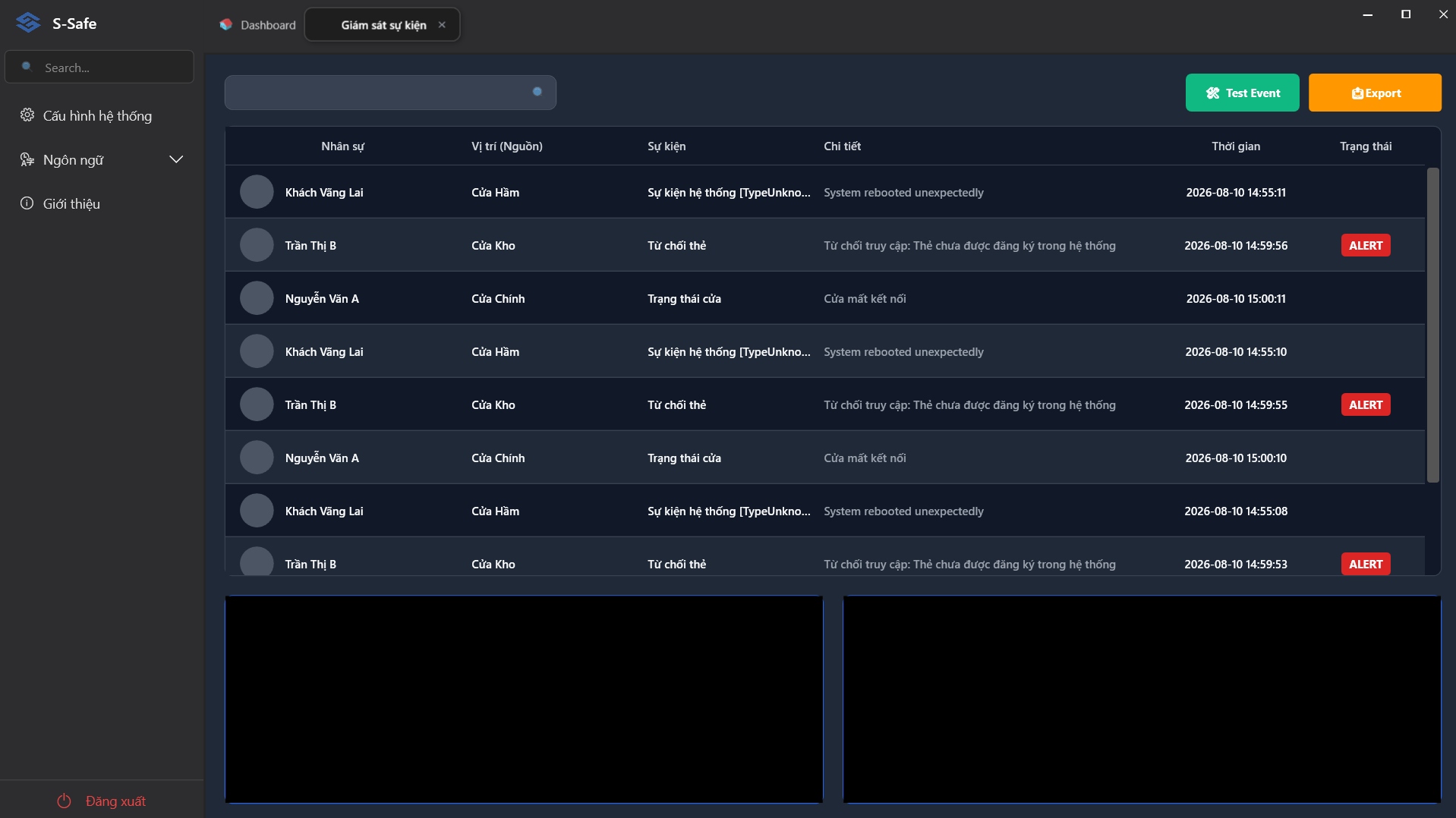

Live Event Monitoring Interface

2. Integrated Live Camera Monitoring (Live Camera Integration)​

The key advantage of this module is the synchronized integration between Access Control data and the CCTV camera system, displayed in the lower panel:

  • Automatic Stream Activation: When a card swipe event occurs at any door, S-Safe automatically pulls the live video stream from the Camera linked to that door and displays it on screen.
  • Visual Cross-Verification: On-duty personnel can immediately see the real-time footage at the door to check for card fraud (one person swiping for multiple people) or any door jamming or intrusion incidents.
  • Multi-Stream Support: The lower panel is divided into independent grid cells, allowing simultaneous monitoring of multiple camera angles when a series of events occur in quick succession.
